TORNADO

LED panel features high-lumen SMD LEDs that provide up to 80% energy savings compared to traditional CFLs. It boasts an
impressive lifespan of 50,000 hours. Equipped with a top-tier driver, ensuring an excellent dimming range and compatibility with renowned global
dimmer brands. With a 120° wide beam angle, its ultra-slim design integrates effortlessly into any work environment. It offers multiple installation
options: recessed into the ceiling, suspended with hanging wires, or surface-mounted on a concrete ceiling using a surface mounting frame.

Description

Description

Housing: Aluminum ( Fins design )
Diffuser: PC Lens
Color Available: Black & Gray
LED Highmast Light, Lego series
170LM/W, Beam Angle P50
Inventronic Driver
CRI: ≥70Ra
Power Factor:>0.9
Reflector: Aluminum Reflector
Working Temperature: -20°C ~ 50°C
Lifespan: >50,000 Hours

Technical

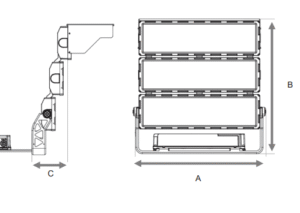

Model # Power LUMEN Dimensions mm
VLZ120500 500W 85000lm A723 X B131 X C335
VLZ121000 1000W 170000lm A723 X B176 X C536
VLZ121500 1500W 255000lm A723 X B221 X C737

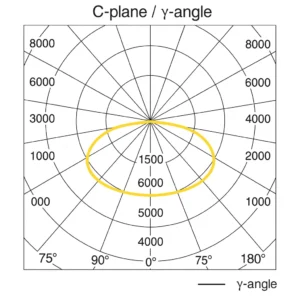

Photometrics

Beam Angle
