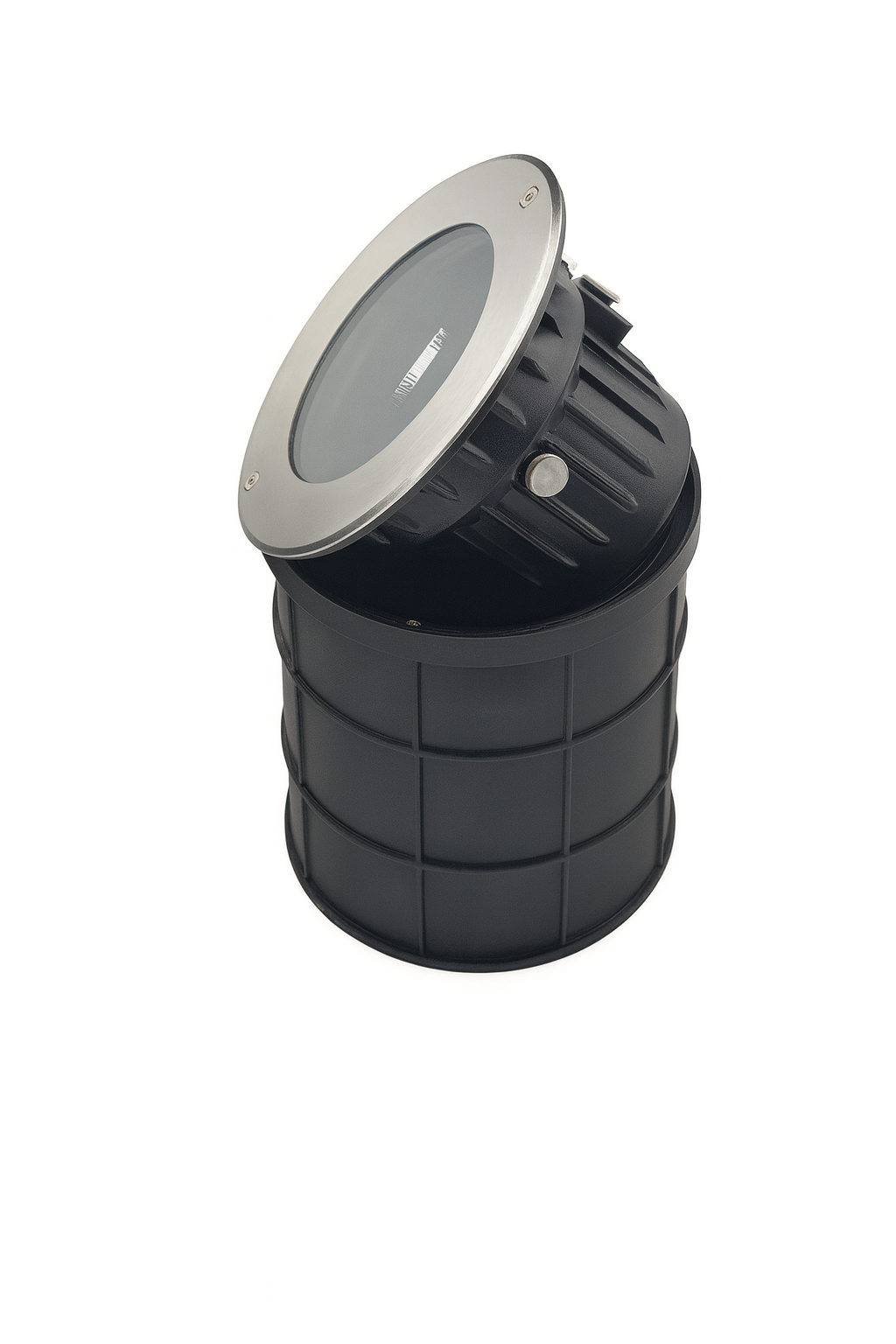

BENDER

Upper light IP67 lighting fixtures equipped with an integrated AC220 ~ 240V power supply and a heat-dissipating body
constructed from thermally conductive techno polymer, ensuring outstanding corrosion resistance even in challenging (saline) conditions.
The trim made of AISI 316L stainless steel and the screen crafted from transparent, tempered extra-clear glass provide protection
against impacts and scratches (IK10).

Description

Description

Housing: Body in Aluminum Die-Casting, 316
Grade Stainless Steel Cover in 4mm
Thickness
Diffuser: Tempered Clear/Frosted Glass in
8mm Thickness, Silicon Rubber Gasket,
Recessed Plastic Box
Color Available: White & Black
Lifespan: >50,000 Hours (L90 B10)
Reflector: Aluminum Reflector Voltage:
AC220~240V
Working Temperature: -20C° ~ 60C°

Technical
Model # Power LUMEN Dimensions mm
VLUL651012 12W 840 A200 X B235
VLUL651015 15W 1000 A116 X B235

Photometrics

Beam Angle

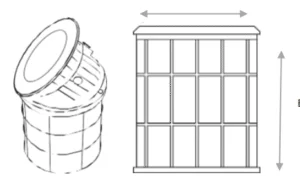

Technical Drawing
