CHRIS

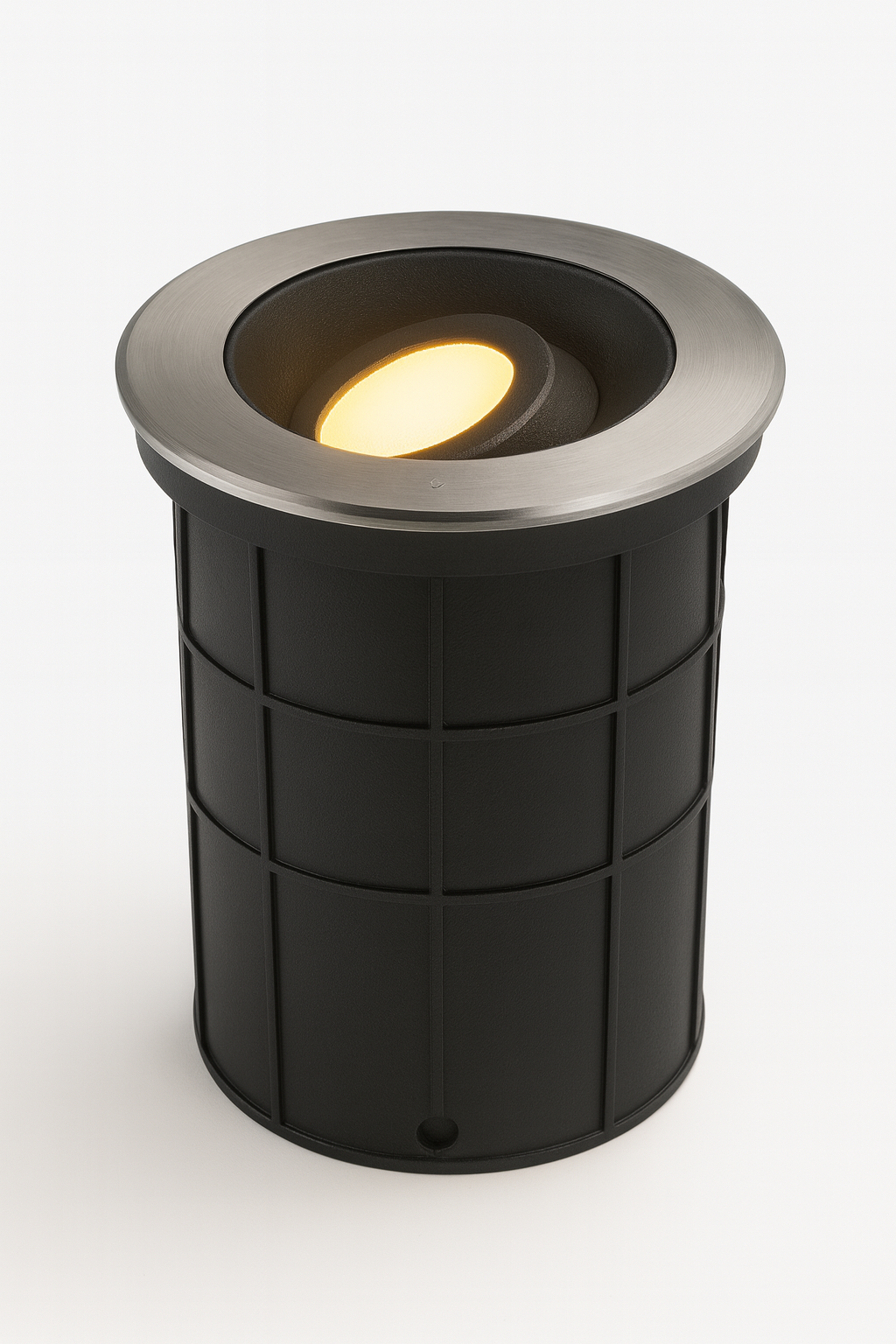

Luminaire designed for installation on the floor, ground, or ceiling, featuring fixed and single adjustable versions suitable for
various applications. The lighting head can be adjusted mechanically without the need to open the luminaire, providing a high degree of
flexibility in lighting control. It boasts a very low glare rating due to the deep recessed lighting head, a die-cast aluminum body, and a
316L stainless steel outer trim. The unit includes 8mm thick tempered glass and exhibits minimal thermal build-up at the diffuser end. It
comes with an integrated driver, and optional versions are available with a frosted diffuser and 24Vdc models.

Description

Description

Housing: Die-Casting, Grey Paint Powder
Coated Aluminum and 316 Stainless Steel
Diffuser: 316 Stainless Steel
Color Available: Black & Gray
Lifespan: >50,000 Hours (L90 B10)
Reflector: Aluminum Reflector
Voltage: AC220~240V
Working Temperature: -20C° ~ 60C°

Technical

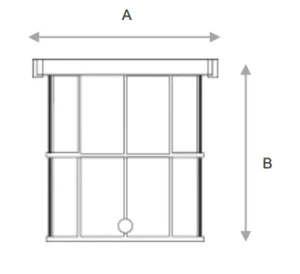

Model # Power LUMEN Dimensions mm
VLUL652025 25W 3000 A260 X B260
VLUL652030 30W 3600 A260 X B260

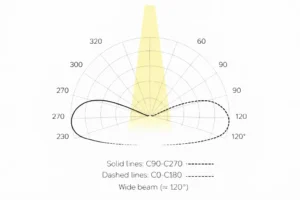

Photometrics

Beam Angle
